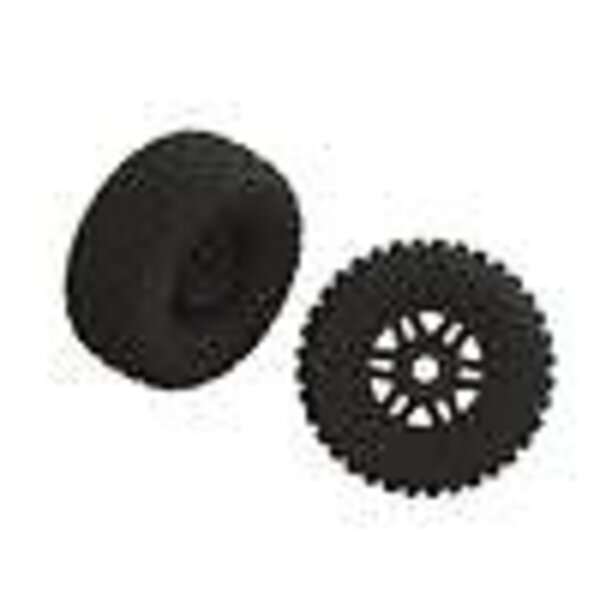

Traxxas dBoots FORTRESS LP Tire Set Glued Black (1 Pair)

Affecting earlier versions of the VXL-6s Speed Control in the X-Maxx
Check the serial # of your ESC at this link for further instructions:
http://traxxas.com/support/repair-exchange/20160115

Ready to Run Traxxas X-Maxx.

This is the 2.4GHz Radio Controlled, Brushless Electric Powered,
Ready to Run Traxxas X-Maxx.

Innovative New Features Include;

**Exclusive Self-Righting Action, if vehicle rolls upside down**
**just press a button on the transmitter and in most cases**
**the X-Maxx will flip upright onto its wheels.**

**One handed body mount and removal system**
**eliminates body posts and pins.**

**Battery Retention System eliminates body clips or hook and loop straps**

**Shock towers also serve as carrying handles and level supports**
**when vehicle is placed upside down for maintenance.**

**Additional Technical Info Will Be Added When It Becomes Available.**

FEATURES

Traxxas Stability Management (TSM): Superior tuning algorithms run on
high-speed electronic components to control wheel spin and steering
direction on loose dirt, concrete and even ice and snow. TSM can be
fine tuned or turned off by adjusting the multi-function knob on
the TQi transmitter or the slider in the Traxxas Link app
Chassis: Composite nylon tub, modular design provides easy access
to critical components, lower front and rear skids and integrated
nerf bars for front, rear and side impact protection
Drive Four wheel shaft drive, high-strength steel CV driveshafts with
splined wheel hexes that eliminate axle pins, aluminum splined
center driveshaft
Brushless Motor: Velineon 1600, 4 pole 1600Kv, 5mm shaft, aluminum
heat sink
Motor Mount: Cradle design eliminates flexing, keyed pins lock gear
mesh in place
Radio: 2.4GHz TQi transmitter with 5-ch micro TSM telemetry ready
receiver, BEC voltage and motor temperature sensors installed,
self righting button, built-in fail safe,
can be equipped with the TQi Docking Base along with the iPhone,
iPad or iPod touch* to create a graphical user interface for the
vehicle Traxxas Link TQi Wireless Module required (not included)
Steering Servo: High-torque with aluminum heat sink, double shear
bearing supported servo horn
Electronic Speed Control: Velineon VXL-6s 6S LiPo compatible
Transmission; Single speed
Differentials: Sealed hardened steel bevel, oil filled, limited slip
Slipper Clutch: Dual fan cooled
Battery Retention System: Integrated into chassis top brace for
greater rigidity, eliminates body clips or hook and loop straps,
adjustable for different batteries
Body: ProGraphix painted and trimmed
Body Mount System: Quick one-hand body installation and removal,
pivoting rear latch mechanism eliminates body posts and clips
Suspension: Captured high-strength steel pins, double sheer
connections, adjustable roll center
Shocks: GTX aluminum bodied, oil-filled, integrated wiper seal keeps
shafts clean reducing seal wear
Shock Towers: Composite plastic construction, also serve as carrying
handles and level supports when vehicle is placed upside down
Tires: Aggressive all-terrain tread 8 x 4 x 4"
foam inserts
Wheels: 3.4 x 5.7 inches (87 x 145mm), 17mm hexes
Steering: Bellcrank
Bumpers: Front and rear composite plastic with impact cushions
behind each bumper to soften blows and add to durability
Ball Bearings: Sealed, full contact
Radio Box: Waterproof

INCLUDES

RTR X-Maxx Truck with Brushless Motor, Radio, ESC, Painted Body,
Quick Start Guide and Maintenance Tools

REQUIREMENTS

Batteries: Two 3S LiPo 5000mAh or greater
Battery Charger: Compatible with selected LiPo batteries
Traxxas offers the #2990 Completer Pack that includes two 3S
5000mAh LiPo batteries, and EZ-Peak Dual charger
AA Cells: For for transmitter
LiPo Charging Bag

SPECIFICATIONS

Vehicle;
Length: 29.84" (758mm)
Front Track: 22.26" (540mm)
Rear Track: 20.66" (525mm) distance from outer edges of wheels
measured side-to-side
Ground Clearance: 4" (102mm)
Weight: 19.1lbs (8.66kg)
Ride Height: 13.79" (350mm)
Overall Drive Ratio: 8.24
Wheelbase: 18.92" (480mm)
Shock Length: 7.4" (187mm)
Battery Tray Dimensions: 7.7 x 2 x 1.7" (197mm x 51.5mm x 44mm)
Body;
Length: 27.7" (705mm)
Width: 9.2" (234mm) behind front wheels, narrowest point
11" (279mm) at rear wheels, widest point
Height: 7.1" (180.3mm)

COMMENTS

Available in the following colors;
Blue, TRAD75BB
Red, TRAD75RR

For Replacement Ball Bearings use:
Qty. Size Location Qty. Bearing Set
